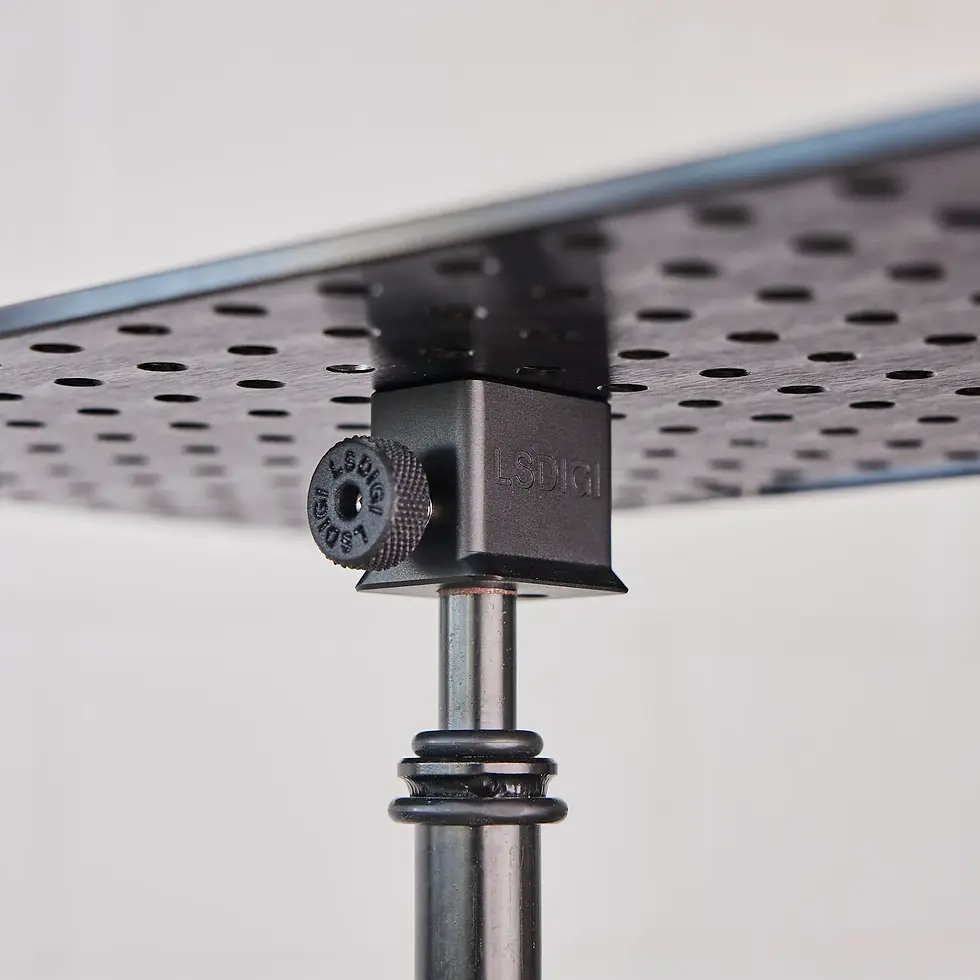

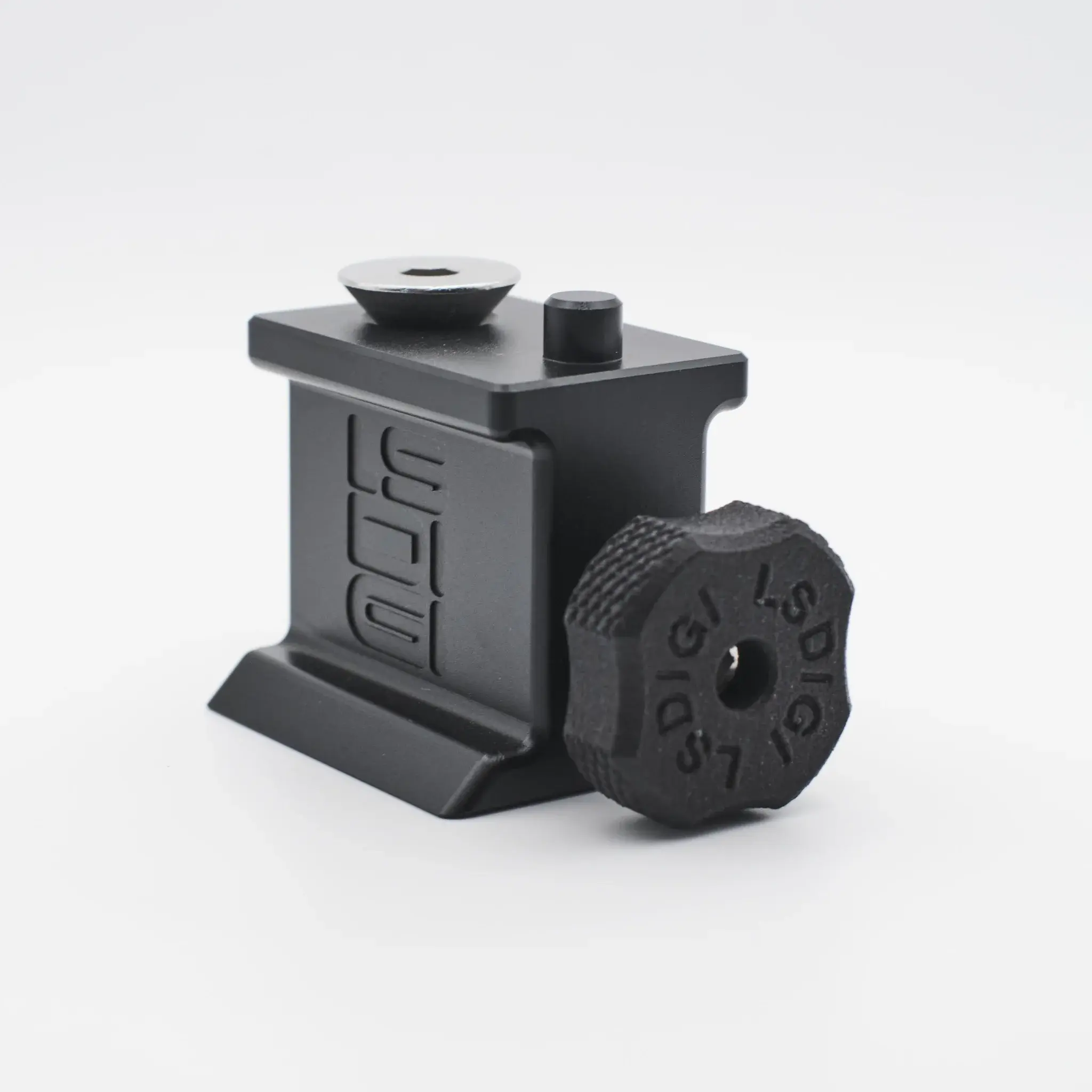

Designed by LS Digi and professionally CNC Machined from 6061 Alloy, Bead Blasted and anodised in Gloss Black, this Arca Swiss Style Base is made for the Inovativ Digiplate Pro & Lite. The base allows a tool free switch between the Baby-Pin mount (like on the Inovativ Cart) to a portable tripod setup with Arca Swiss quick release head. The base is compact and works with original Inovativ Digi Legs.
It’s recommended to be used with hand adjustable / tightened heads such as the iWorkCase Levelling base.
There is also a 3/8-16 thread at the bottom to fit tripod plates and other common accessories.
This is a new and improved design with sleeker body, tighter tolerance on the baby-pin shaft (so there’s less wobble) and a brand new larger Hybrid Thumbscrew with stainless steel thread & 30% lighter design.
MATERIAL
CNC Machined from 6061-T6 Aluminium, Bead Blasted and Anodized Type II (Gloss Finish)
DIMENSIONS
W: 30mm x L: 45mm x H: 40mm (excl top pin)
Max insertable length into baby pin hole - 35mmWeight: 86g
Allen key drive size: 7/32
PACKAGE CONTENTS
1x Arca Swiss Type Base for Digiplate
1x Counter-sunk 3/8-16 5/8" bolt to secure onto the DigiPlate
1x LSdigi Hybrid Thumbscrew (3/8-16 15mm)
